FMC7164 – High-Speed ADC/DAC FMC Module —4x 16-bit 1GSPS ADC + 4x 16-bit 1.25GSPS DAC | JESD204B Interface

Online inquiry

Previous Next

Detailed Description Key Specifications Ordering Information

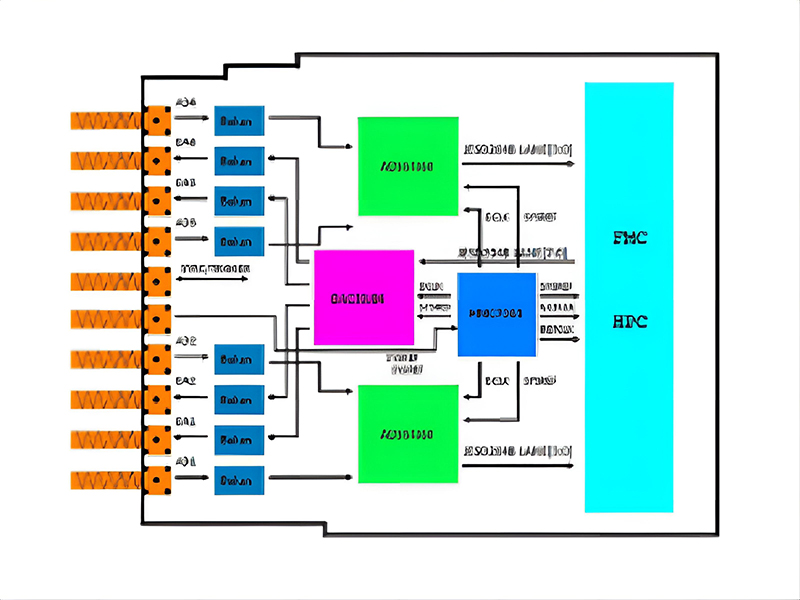

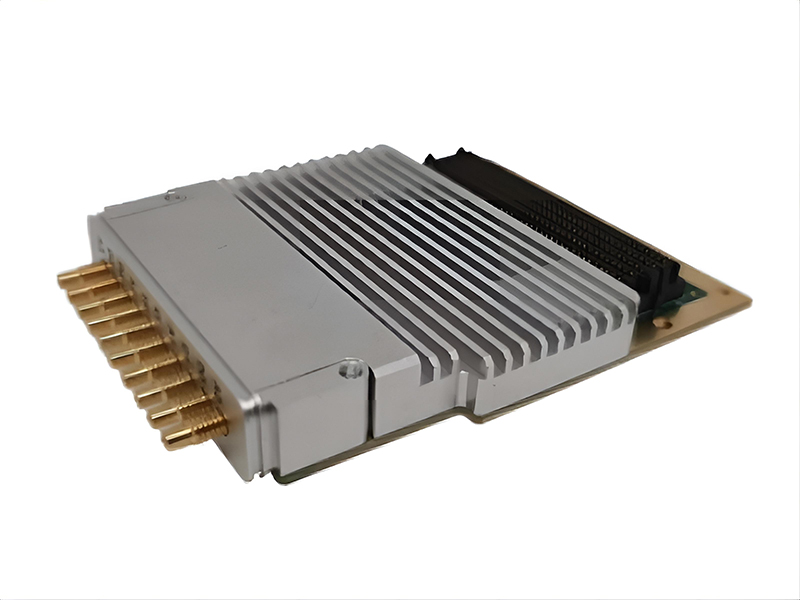

The FMC7164 is a high-performance FMC (VITA57.1 compliant) daughter card featuring quad-channel 16-bit ADCs and DACs with JESD204B serial interfaces. Designed for RF and wideband signal processing, it integrates precision clocking (HMC7044) and supports both internal/external triggering for synchronization-critical applications.

Key Advantages

· Ultra-High Resolution: 16-bit ADCs (1GSPS) and DACs (1.25GSPS) for dynamic signal acquisition/generation.

· Low-Noise Design: ADC noise floor of -159dBFS/Hz and 100dB channel isolation.

· Ruggedized: Operates in -40°C to +85°C environments with SSMC RF connectors.

Why Choose FMC7164?

· Industry-Leading SNR: -159dBFS/Hz ADC noise for sensitive RF applications.

· Synchronization Ready: JESD204B + HMC7044 ensure deterministic latency.

· Plug-and-Play: Compatible with Xilinx FPGA development kits.

Contact us for custom firmware or multi-card synchronization solutions.

Software Support

· FPGA IP Cores: JESD204B PHY and link layer for Xilinx FPGAs.

· Test Routines: Reference designs for K7/Z7/KU/ZU platforms.

Applications

· Multi-Carrier Communications: Massive MIMO and beamforming.

· Radar Systems: Phased-array signal acquisition/generation.

· Test & Measurement: High-speed digitizer/arbitrary waveform generator.

· SDR Platforms: Software-defined radio frontends.

1. Data Converter Performance

Parameter	ADC (ADS54J60)	DAC (DAC39J84)
Resolution	16-bit	16-bit
Sample Rate	1 GSPS	2.8 GSPS (max)
Channels	4	4
Interface	8-lane JESD204B	8-lane JESD204B
Bandwidth	1.2 GHz (analog input)	1.25 GSPS (input data)
Noise/Crosstalk	-159dBFS/Hz, 100dBc @170MHz	N/A

2. Clocking & I/O

Component	Specification
Clock Chip	HMC7044 (software-selectable onboard/external clock)
Connectors	10× SSMC (RF I/O)
Triggering	Internal/external trigger support

3. Physical & Environmental

Attribute	Value
Form Factor	FMC (VITA57.1), 84.1 × 69mm
Operating Temp	-40°C to +85°C
Compatibility	Xilinx K7/Z7/KU/ZU FPGA series

Model	Description
FMC7164A	4x ADC + 4x DAC (Full-featured)
FMC7164B	4x ADC only
FMC7164C	4x DAC only

Included Accessories

· FMC interposer board (optional);

· Clock synchronization cables.

Related products

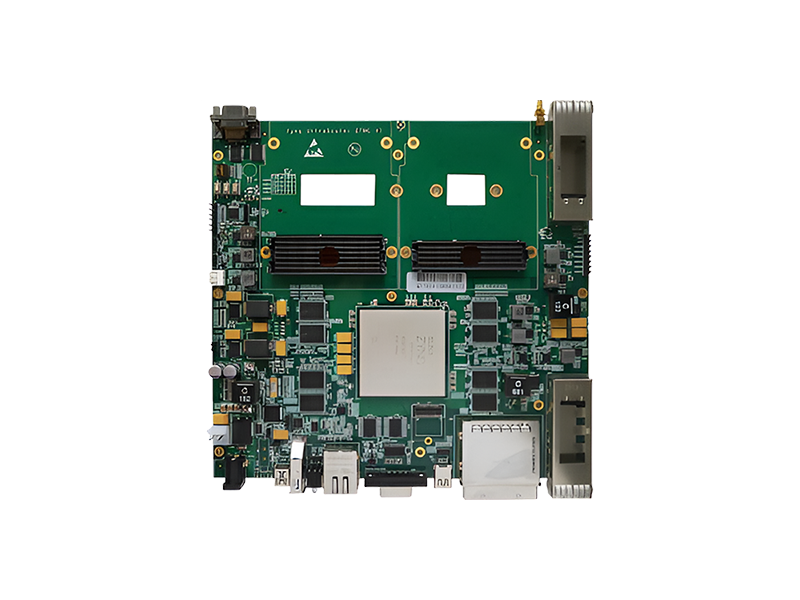

XZM-7024—High-Performance FMC/FMC+ Carrier Board with Zynq UltraScale+ MPSoC Detailed Description
AMD UltraScale+ mpsoc best fpga board high performance signal processing board FPGA xczu19eg

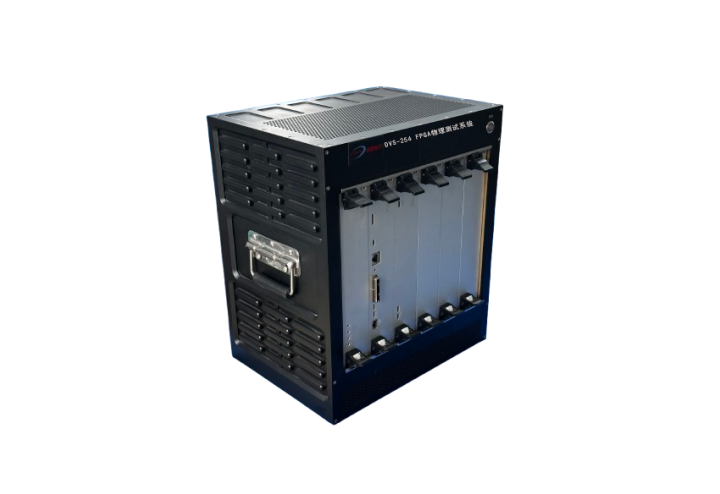

DVS254 – DO-254 Compliant FPGA Verification Platform—Automated Physical Test & Simulation | DAL-A/B Certified | 83% Workload Reduction
DO-254 DO-254 physical test dal a/b FPGA verification and validation a robust test for weak instruments

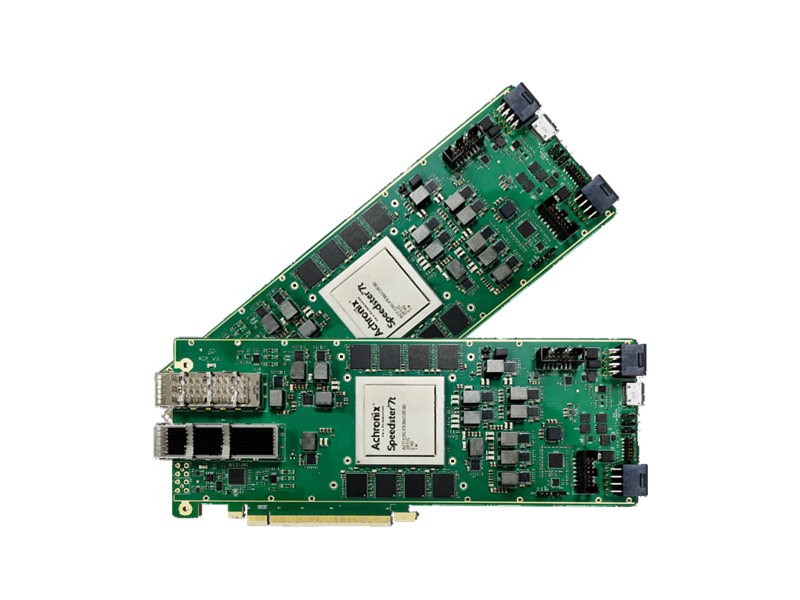

HBX-500—High Performance Accelerator Card—Unlock Next-Generation AI with FPGA-Powered Acceleration
High Performance Accelerator Card Achronix Speedster7t AC7t1550 AI/ML, high-performance computing (HPC)

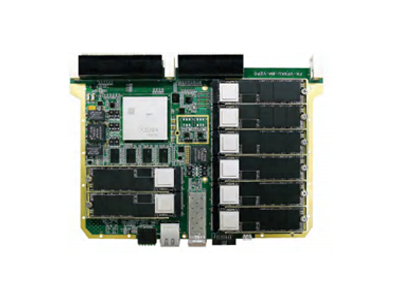

XNM-6VP—6U VPX High-Speed Data Recorder (Xilinx KU115 FPGA + NVMe Storage) — 8GB/s Sustained Write/Read, 32TB Capacity, for Radar/Satellite Real-Time Recording
VPX High-Speed Data Recorder 6U VPX module FPGA NVME High Bandwidth 32T

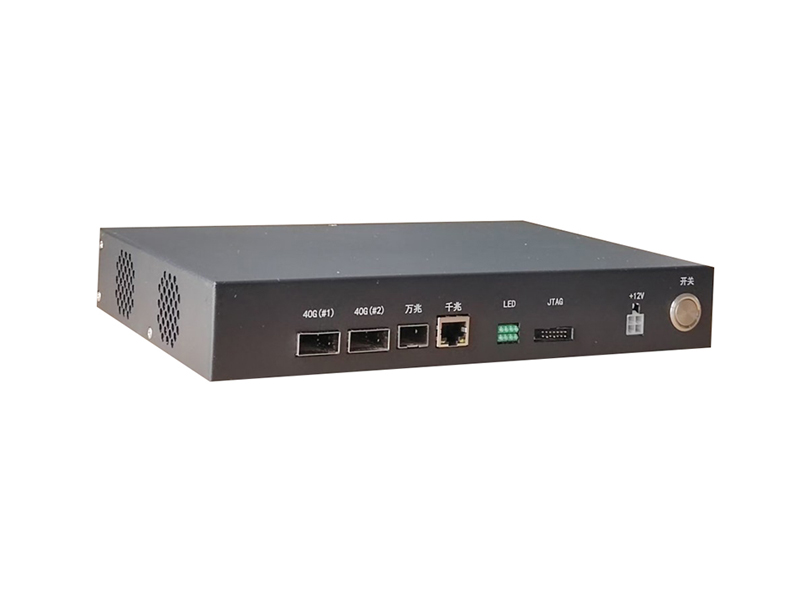

XNM-KU-M4 – High-Speed Data Recording Module (Xilinx KU115 FPGA + NVMe SSD) — 4.8GB/s Sustained Recording, 32TB Capacity, for Radar/EW Real-Time Data Capture
High-Speed Data Recording NVMe SSD 10GbE for FTP management

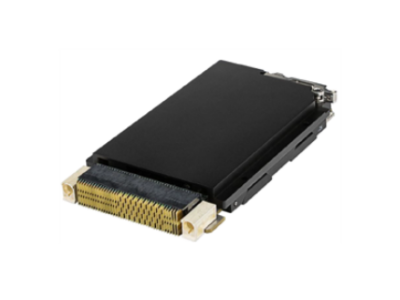

VPX-3U-i7 – 3U VPX High-Performance Computing Module— Intel Core i7/Xeon® E3 Processors | 16GB DDR4 | Dual 4K DisplayPort | PCIe Gen3 x8
High-Performance Computing Module Intel Core i7/Xeon® E3 Multi-Core Processing SBC BOARD

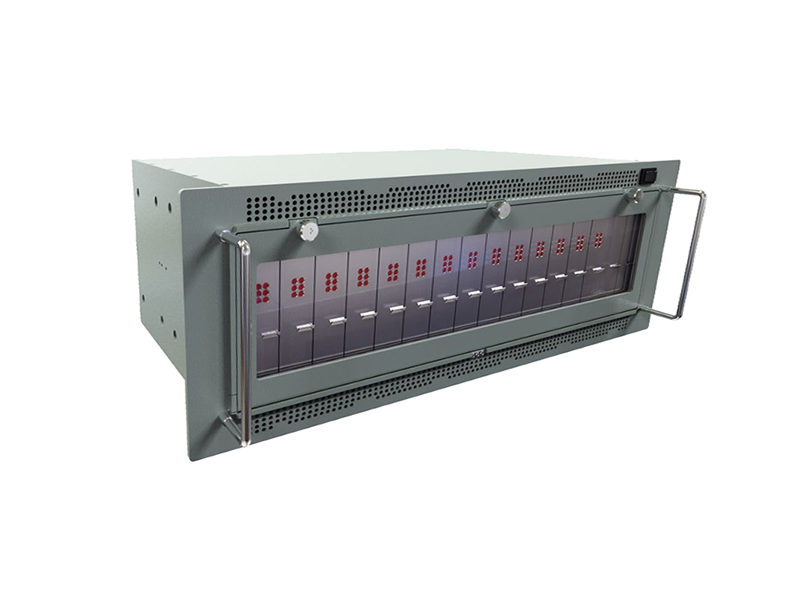

JVH-316-J1M — 4U VPX Modular Computing Platform — Multi-Processor Support | 14-Slot 3U VPX Chassis | Conduction-Cooled Rugged Design
VPX Modular Computing Platform 3U VPX Chassis

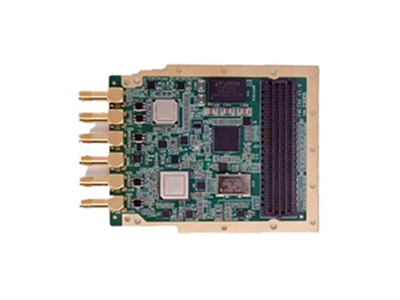

FMC7180 – Ultra-High-Speed Data Conversion FMC Module— 2x 14-bit 3GSPS ADC + 2x 16-bit 12.8GSPS DAC | JESD204B | 9GHz Bandwidth
