VPX-3U-i7 – 3U VPX High-Performance Computing Module— Intel Core i7/Xeon® E3 Processors | 16GB DDR4 | Dual 4K DisplayPort | PCIe Gen3 x8

Online inquiry

Previous Next

Detailed Description Key Specifications Ordering Information

The VPX-3U-i7 is a rugged 3U VPX computing module designed for demanding embedded applications in defense, aerospace, and industrial automation. Featuring Intel Core i7/Xeon® E3 processors and QM170/CM236 chipsets, it delivers workstation-class performance in a compact, conduction-cooled form factor.

Key Features

▪ Multi-Core Processing: Quad-core Intel CPUs (up to 3.7GHz Turbo) with 8-thread hyper-threading.

▪ High-Speed Expansion: Configurable PCIe Gen3 x8/x4 lanes for FPGA/GPU co-processing.

▪ Dual 4K Display Outputs: Support 4096x2160@60Hz via DisplayPort 1.2.

▪ Ruggedized Design: -40°C to +80°C operation (screened) with conduction cooling.

Applications

▪ Defense: Mission computing, radar signal processing;

▪ Aerospace: Avionics, UAV control;

▪ Industrial: Automated test equipment, HMI.

Why Choose VPX-3U-i7?

▪ Performance Scalability – From 25W i7 to 45W Xeon® for compute-intensive tasks.

▪ VPX Ecosystem – VITA 65 compliant for defense integration.

▪ Dual 4K Displays – Critical for situational awareness systems.

Contact us for customization (OS support, legacy I/O, or SWaP-optimized versions).

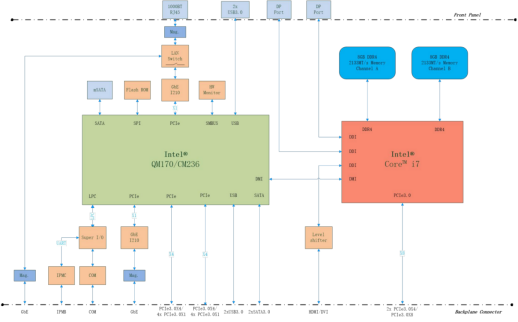

1. Core Computing

Component	Specification
Processors	¤ Standard: i7-6822EQ (2.0GHz, 25W) ¤ Optional: i7-6820EQ (2.8GHz, 45W) / Xeon? E3-1505M v5 (2.8/3.7GHz)
Chipset	Intel QM170/CM236
Memory	16GB DDR4 (dual-channel, 2133MHz)
Graphics	Intel HD Graphics 530 (supports 4K DP1.2)

2. I/O & Expansion

Interface	Details
PCIe	4×4 Gen3 (configurable as 1×8 + 2×2 + 4×1)
Network	3× Gigabit Ethernet (1 front + 2 rear)
Storage	1× mSATA (SATA3) + 2× rear SATA3
USB	2× USB3.0 (front) + 3× USB3.0 (rear)

3.Reliability & Environmental

Parameter	Specification
MTBF	≥30,000 hours
Operating Temp	¤ Industrial: -20°C to +65°C ¤ Extended: -40°C to +80°C (screened)
Storage Temp	-55°C to +85°C
Cooling	Conduction (VITA 48)

Model	Processor	Thermal Option
VPX-3U-i7-25W	i7-6822EQ (2.0GHz, 25W)	Standard conduction
VPX-3U-i7-45W	i7-6820EQ (2.8GHz, 45W)	Enhanced heatsink
VPX-3U-XEON	Xeon? E3-1505M v5 (3.7GHz)	MIL-STD screening
